Generate Key Pair

openssl genrsa -out id_rsa 2048

Extract Public Key to a File

openssl rsa -in id_rsa -pubout -out id_rsa.pub

└─$ ls
id_rsa  id_rsa.pub

└─$ file *
id_rsa:     OpenSSH private key (no password)
id_rsa.pub: OpenSSH public key

Convert

openssl pkcs12 -export -name "corp.515support.com" -out corp.515support.com.pfx -inkey corp.515support.com.key -in corp.515support.com.crt

• Certificates are often issued by CAs in the PEM format.
• Windows servers often use the PKCS#12 format, where keys are merged into a single file.
• The PKCS#12 format is an archival file that stores both the certificate and the private key.
• PKCS#12 files use either the .pfx or .p12 file extension.

Extracting Public Key to Generate CSR

openssl req -new -key id_rsa -out corp.515support.com.csr

Verify the Certificate Request

openssl req -text -in corp.515support.com.csr -noout -verify

Display CSR

cat corp.515support.com.csr

Copy CSR

Note: Make sure to copy everything including the header and the footer as seen below

-----BEGIN CERTIFICATE REQUEST-----
....
....
-----END CERTIFICATE REQUEST-----

Generate Certificate

openssl req -newkey rsa:2048 -nodes -keyout corp.515support.com.key -x509 -days 365 -out corp.515support.com.crt

Example Environment

• 192.168.0.5 - User1
• 192.168.100.10 - User2
• Running a web server locally on port 3000
• Located in another LAN only accessible through User1's machine
• 192.168.0.15 - Kali (Attack Box)

Dynamic Port Forwarding

ssh -D -N 9050 User1@192.168.0.5

• -N runs the command with no interactive shell.
• This will create a proxy on our local port 9050 (127.0.0.1:9050).
• Run commands through proxychains in a separate terminal.

Dynamic Port Forwarding: Example of Running Nmap via ProxyChains

proxychains nmap -sT 192.168.100.10

• This forwards the scan through port 9050 and appears as though it came from 192.168.0.5.

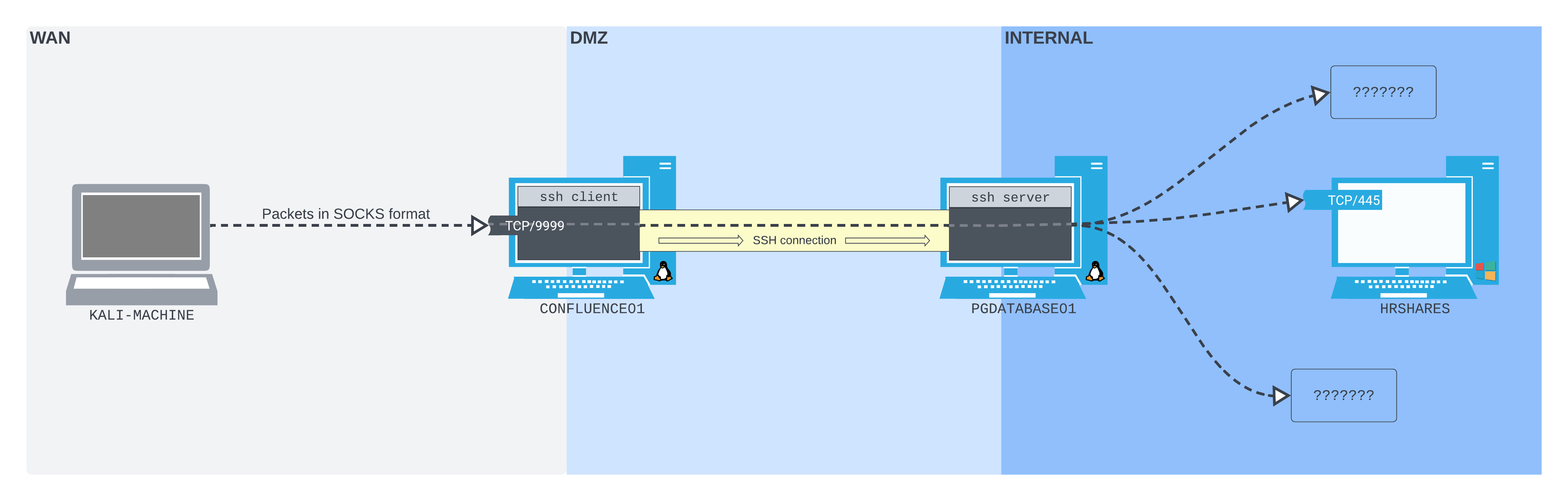

Dynamic Port Forward (Turning Remote Machine into Forwarding Proxy)

Note: This will be run as a background process on the CONFLUENCE01 machine

ssh -N -D 0.0.0.0:9999 database_admin@10.4.50.215

ssh -N -D <CONFLUENCE01_listening_interface>:9999 database_admin@PGDATABASE01

• This will bind a listener to port 9999 on the CONFLUENCE01 machine and forward all traffic through the SSH tunnel established with the PGDATABASE01 machine.

Local Port Forwarding

ssh -N -L 1234:localhost:3000 User2@192.168.100.10

• This binds local port 1234 to remote port 3000 on User2.
• Open Firefox and go to localhost:1234.

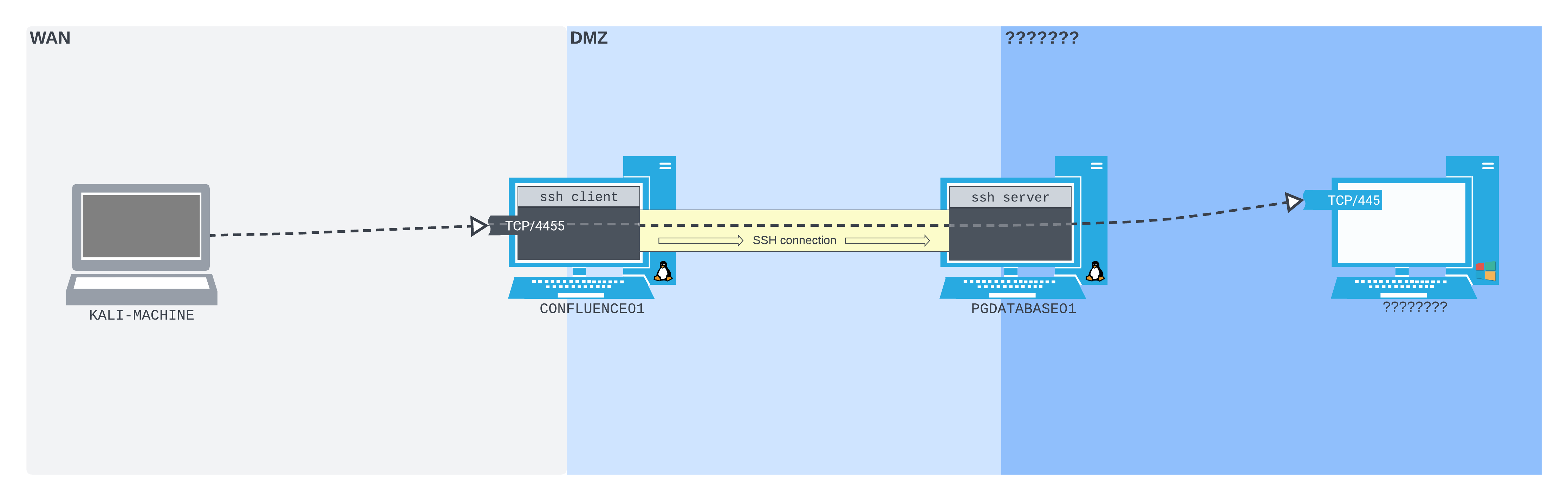

Local Port Forwarding Through Multiple Machines

Note: This involves 4 total machines: our machine, Confluence01, PGDatabase01, and the final machine.

ssh -N -L 0.0.0.0:4455:172.16.50.217:445 database_admin@10.4.50.215

• This is run on Confluence01.
• Connecting to port 4455 on Confluence01 is like connecting to port 445 on 172.16.50.217.

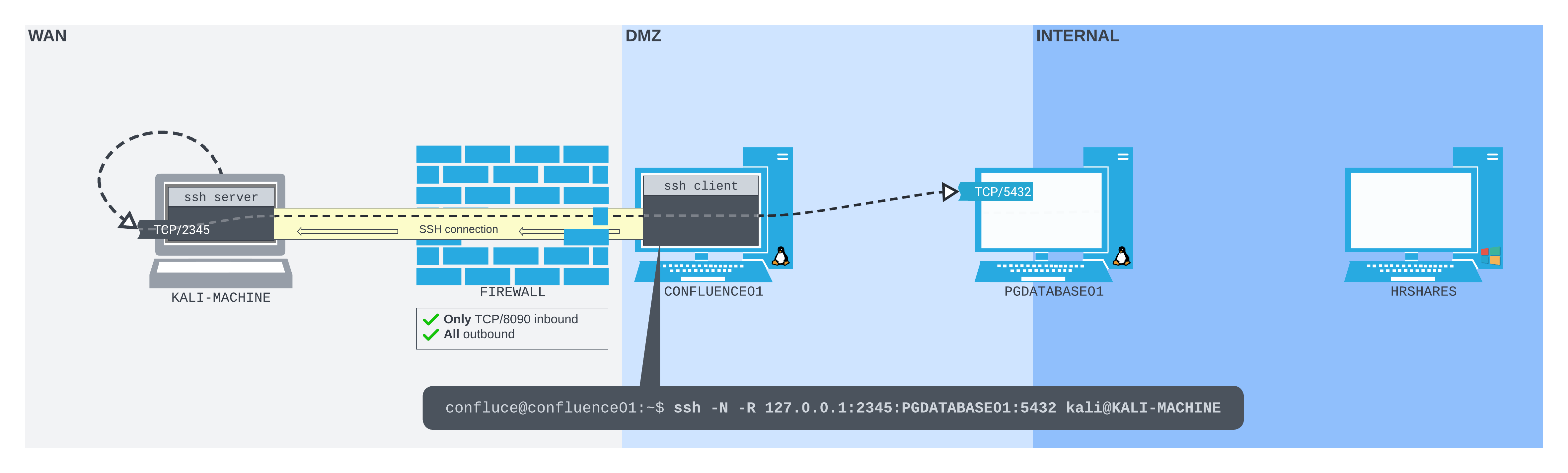

Remote Port Forwarding

ssh -N -R 127.0.0.1:2345:10.4.50.215:5432 kali@192.168.118.4

• -N sets no-shell.
• -R is for remote port forwarding.
• 127.0.0.1:2345 is a local listener on port 2345.

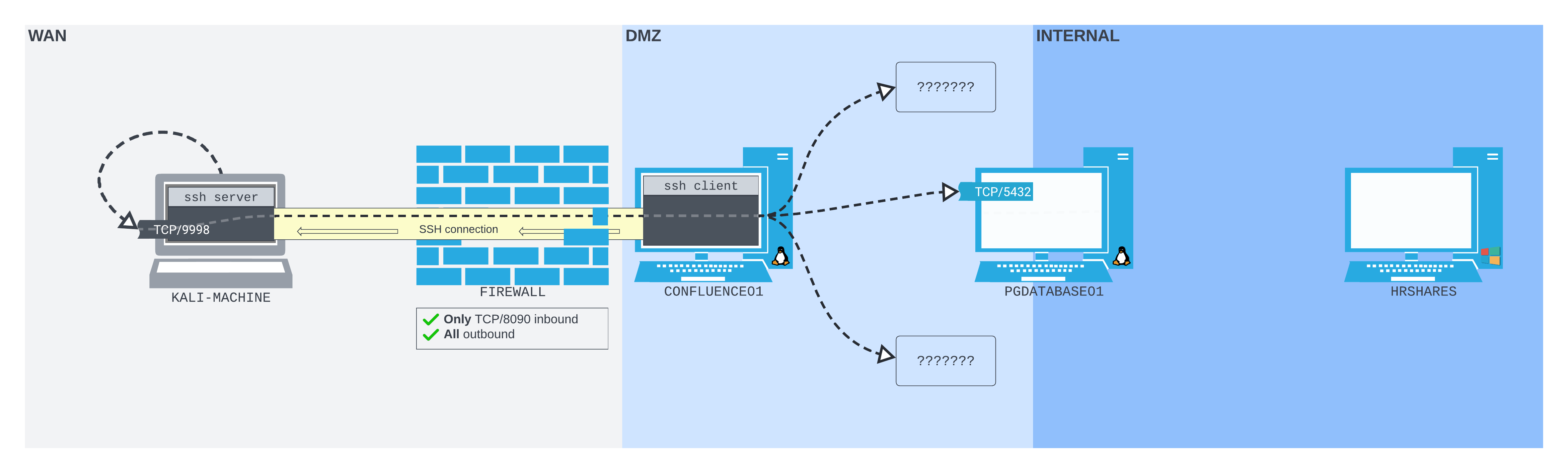

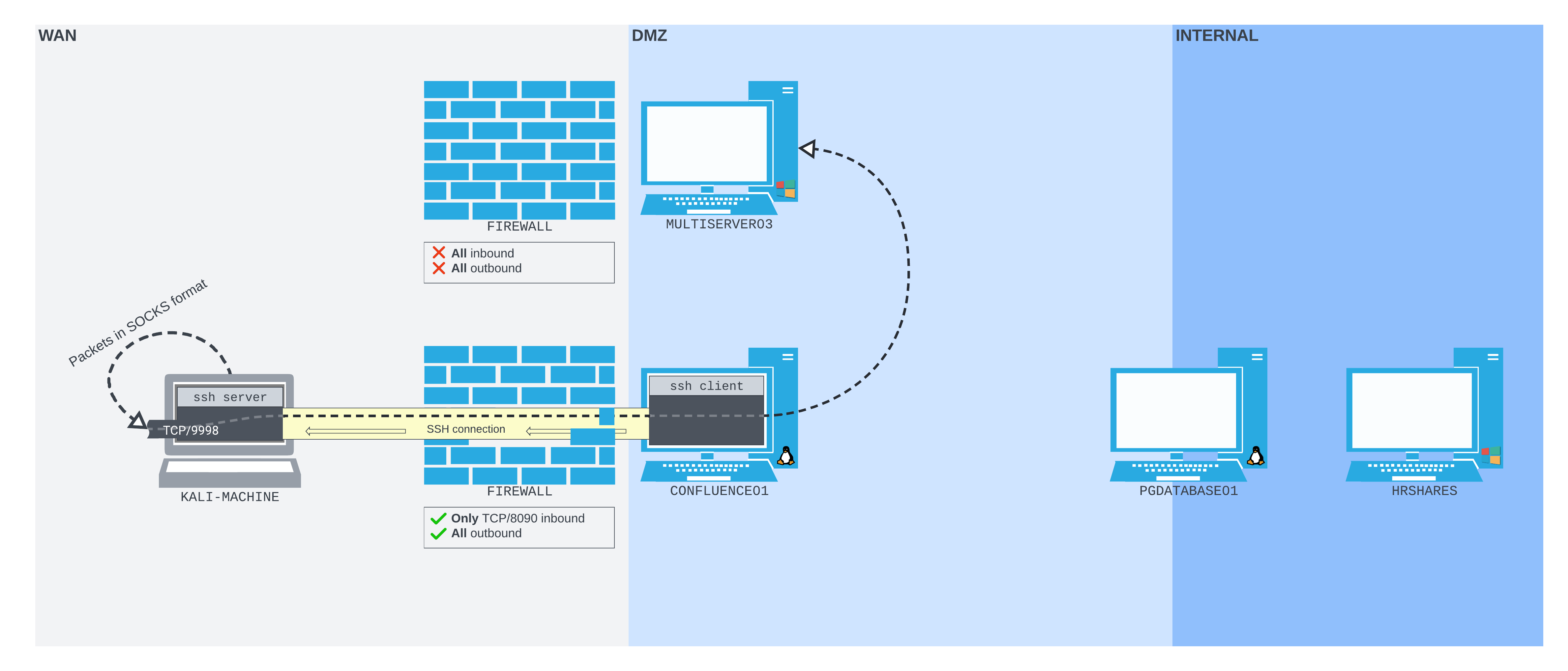

Remote Dynamic Port Forward

ssh -N -R 9998 kali@192.168.45.197

ssh -N -R 127.0.0.1:9998 kali@192.168.45.197

• Uses the same -R option as classic remote port forwarding.
• Pass only the socket you want to listen on the SSH server.
• If you just pass a port, it binds to loopback by default.

Host Jumping

ssh -J User1@192.168.0.5 User2@192.168.100.10

• This creates a tunnel through the first computer and on to the second.

Example of Host Jumping && Local Port Forwarding

ssh -J User1@192.168.0.5 -L 1234:localhost:3000 User2@192.168.100.10

• This combines a tunnel from our machine to machine 1 and binds local port 1234 to the remote port 3000 of machine 2.
